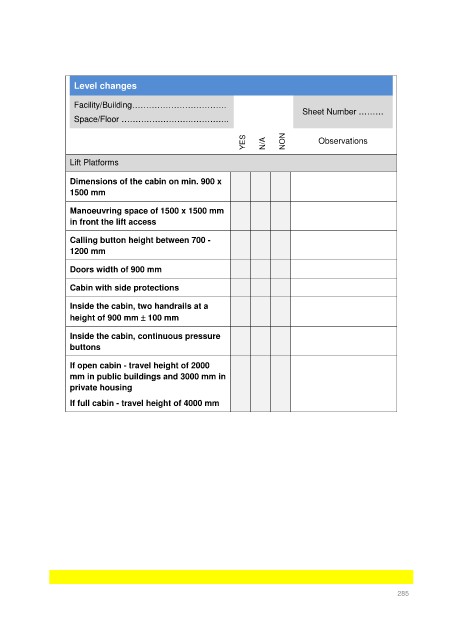

Level changes

Facility/Building…………………………….
Sheet Number ………
Space/Floor …………………….…………..

YES N/A
NON Observations

Lift Platforms

Dimensions of the cabin on min. 900 x
1500 mm

Manoeuvring space of 1500 x 1500 mm
in front the lift access
Calling button height between 700 -
1200 mm

Doors width of 900 mm

Cabin with side protections

Inside the cabin, two handrails at a
height of 900 mm ± 100 mm

Inside the cabin, continuous pressure
buttons

If open cabin - travel height of 2000
mm in public buildings and 3000 mm in
private housing
If full cabin - travel height of 4000 mm

285
