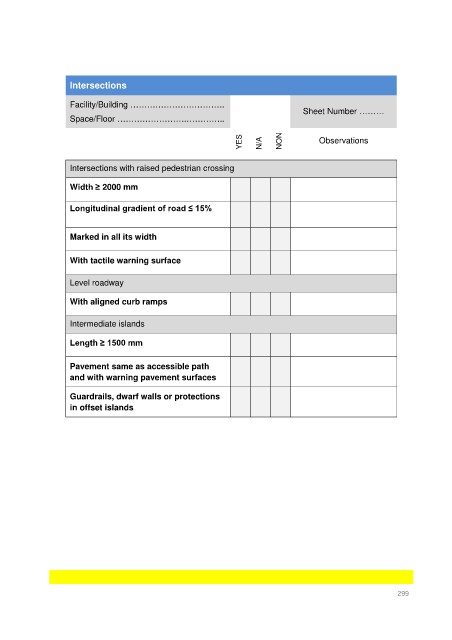

Intersections

Facility/Building …………………………….
Sheet Number ………
Space/Floor …………………….…………..

YES N/A NON Observations

Intersections with raised pedestrian crossing

Width ≥ 2000 mm

Longitudinal gradient of road ≤ 15%

Marked in all its width

With tactile warning surface

Level roadway

With aligned curb ramps

Intermediate islands

Length ≥ 1500 mm

Pavement same as accessible path
and with warning pavement surfaces

Guardrails, dwarf walls or protections
in offset islands
