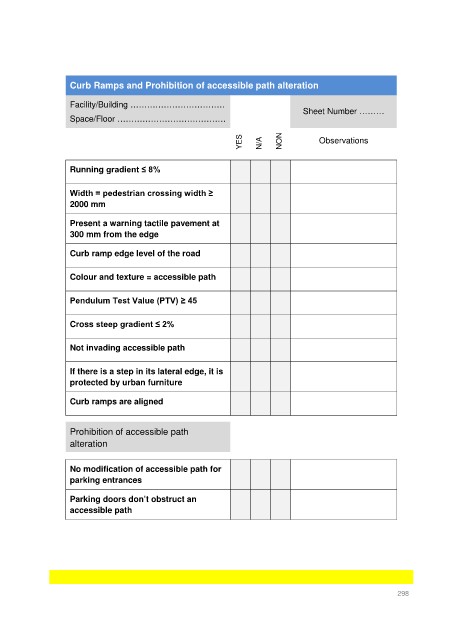

Curb Ramps and Prohibition of accessible path alteration

Facility/Building …………………………….
Sheet Number ………
Space/Floor …………………………………

YES N/A NON Observations

Running gradient ≤ 8%

Width = pedestrian crossing width ≥
2000 mm

Present a warning tactile pavement at
300 mm from the edge

Curb ramp edge level of the road

Colour and texture = accessible path

Pendulum Test Value (PTV) ≥ 45

Cross steep gradient ≤ 2%

Not invading accessible path

If there is a step in its lateral edge, it is
protected by urban furniture

Curb ramps are aligned

Prohibition of accessible path
alteration

No modification of accessible path for
parking entrances

Parking doors don’t obstruct an
accessible path
